Описание
| Параметр | Значение |
|---|---|

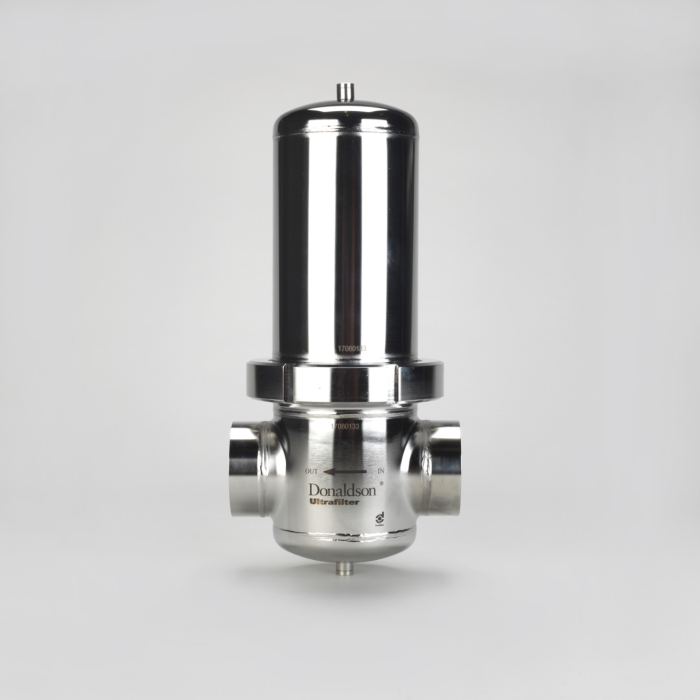

| Model: | P-EGS |
| Housing Size: | 0030 |
| Element Size: | Size 10/50 |
| Element Type: | UF Push-In Connection |
| Connection Type: | G 3 |
| Flow Rate (Steam): | 520 Kg/hr(1146.60 Lbs/hr) |
| Maximum Operating Pressure: | 16 Бар(232 Фунты/кв. дюйм) |
| Максимальная рабочая температура: | 200 C(392 F) |
| Minimum Operating Temperature: | -25 C(-13 F) |
| Drain Connection: | G 1/4 |
| Vent Connection: | G 1/4 |
| Plug Type: | Plug |
| Filter Housing Material: | 1.4404 / 316 Stainless Steel |
| Housing Gasket Material: | Fluoraz® |
| Plug Material: | Stainless Steel |
| Inner Surface Finish: | Pickled and Passivated to Ra 63 µin / 1.6 µm |
| Outer Surface Finish: | Pickled. Passivated and Polished to Ra 63 µin / 1.6 µm |
| Длина: | 210 Миллиметры(8.27 Дюймы) |
| Высота: | 509 Миллиметры(20.04 Дюймы) |
| Ширина: | 240 Миллиметры(9.45 Дюймы) |
| Масса: | 11.2 Кг(24.69 Фунты) |
| PED 2014/68/EU: | Yes |
| Materials According to EC1935 2004: | Yes |
| Materials According to FDA CFR Title 21: | Да |
| EAC: | Yes |
